3000w Vertical Axis Windmills 12/24/48v Wind Turbine Generator

Name: 3000W Vertical Axis Windmills 12/24/48V Wind Turbine Generator Power 3 Blades
Brand: N/A
SKU: v1|397409950040|665800020036
Price: 322.04 USD
Availability: InStock

Power 3 Blades

USD $322.04

Condition : New

Free Shipping

{{variant_type_name}} :

SKU: N/A This site contains affiliate links for which we may be compensated Categories: Home & Garden / Home Improvement / Electrical Supplies / Alternative Energy Supplies / Wind Power Supplies / Wind Turbines & Kits

Notify me when the price drops

We will email you if we find a lower price on this product!

Target price (USD) $

Description

You may also like

3000W Vertical Axis Windmills 12/24/48V Wind Turbine Generator Power 3 Blades

Product Description

The wind turbine is equipped with a bearing power booster

(propels the blades when the wind is very light and further

boosts them when the wind is strong)

With intermediate shaft

Specification：

Condition: New

Control system: Electromagnetism

Starting wind speed: 1.3m(12inch)/s

Switched on wind speed: 2.5m(98inch)/s

Rated wind speed: 11m(433inch)/s

Max. instantaneous wind speed: ≤40m(1575inch)/s

The instantaneous maximum wind speed: ≤45m(1772inch)/s

Blades quantity: 3 (with different colours)

Diameter of the blades: 0.6m/24inch

Height of the blades: 0.8m/31inch

Speed regulation: Automatic

Rated voltage: 12V/24V/48V

Rated power: 2500W

Max power: 3000W

Protection class of the generator: IP67

Working environment temperature: -40℃+60 ℃

Protection against overspeed: Electromagnetic brake

Blade material: Glass fibre

Generator: Magnetic levitation generator

Installation instructions: Not included in the scope of delivery

Description:

The wind turbine with the coreless permanent magnet generator and three

high-strength fibreglass blades is more robust and has a long service life.

The spiral-shaped blades are aerodynamically designed so that the rotor runs

smoothly and reliably, resulting in stable power generation.

It also offers maximum speed protection.

It is well suited for boats, gazebos, cabins or mobile homes and other domestic,

commercial and industrial power supplies.

Key features

Great durability:

The wind turbine with the coreless permanent magnet generator and three high-strength

fibreglass blades is more durable and has a long service life.

Smooth running:

The spiral blades are aerodynamically designed to make the rotor run smoothly and reliably,

resulting in stable power generation. The double bearing and low vibration ensure more

stable operation.

Low noise:

Thanks to the design principle of aeroplane wings and rotation in a horizontal plane,

noise can be reduced to a level that cannot be measured in the natural environment.

Generation of electricity at lower wind speeds:

Due to its compact shape, low starting wind speed and large wind-facing surface,

the wind turbine can generate electricity even at lower wind speeds.

Strong wind resistance:

The horizontal rotation results in low wind pressure so that it can withstand a super typhoon.

Protection against maximum speed:

When the wind turbine reaches the maximum speed of 300rpm, it will automatically slow down.

Easy to install:

Everything you need for installation is included. The wind turbine with a user-friendly

and practical flange design is easy to install.

Low starting wind speed:

The starting wind speed is lower than other wind turbines, and the rise of power

generation is smooth, so it can generate more power than others within a certain range.

Details

Vertical rotor blades:

The main force point of the wind turbine is concentrated on the blade edge,

so that blade shedding, breaking or flying out can be effectively avoided.

Three-phase AC permanent magnet generator:

The wind turbine with an intelligent tracking microprocessor with low torque

and high power can efficiently regulate current and voltage.

It greatly increases wind energy utilisation and annual electricity production.

Aluminium main pole:

The main pole is made of aluminium with high hardness and can be fully recycled,

so it is inconvenient to break and environmentally friendly.

Application

It is well suited for boats, pavilions, cabins or mobile houses, and other energy

supplies for households, businesses and industry.

Installation

1. check all parts of the wind turbine, which includes a total of 6 brackets and 3 blades.

2 Position the wind turbine vertically.

3. connect the brackets to the blades using the screws. Place the top and bottom cover

plates on top.

4 Fasten the screw in the mounting hole (at the end of the bracket) from the outside of

the wind turbine.

5. tighten all screws of the blades and the bracket and switch on the blades.

There should be no unusual noises or blockages.

Tighten the nut (under the top cover plate of the wind turbine) to secure the top cover plate.

6. align the flange hole of the wind turbine with the flange hole of the mast,

place washers and lock washers and tighten the nut.

7. professional installation is strongly recommended if you have no experience

with installation.

8. you can watch the attached installation video for reference.

9. if you have any problems, please do not hesitate to contact us.

We will reply and solve the problem for you as soon as possible.

Notes

1. There are two different types of screws. Please check the correct position of the screws

before installation.

2) The top cover plate of the wind turbine does not need to be tightened,

and the blades can be properly adjusted up or down during installation.

3) When installing the wind turbine vertically, please prevent the bottom flange from

crushing the output cable.

4.Please allow the slight color difference caused by shooting light and 1-3 cm error

due to manual measurement, and make sure you don't mind before you order.

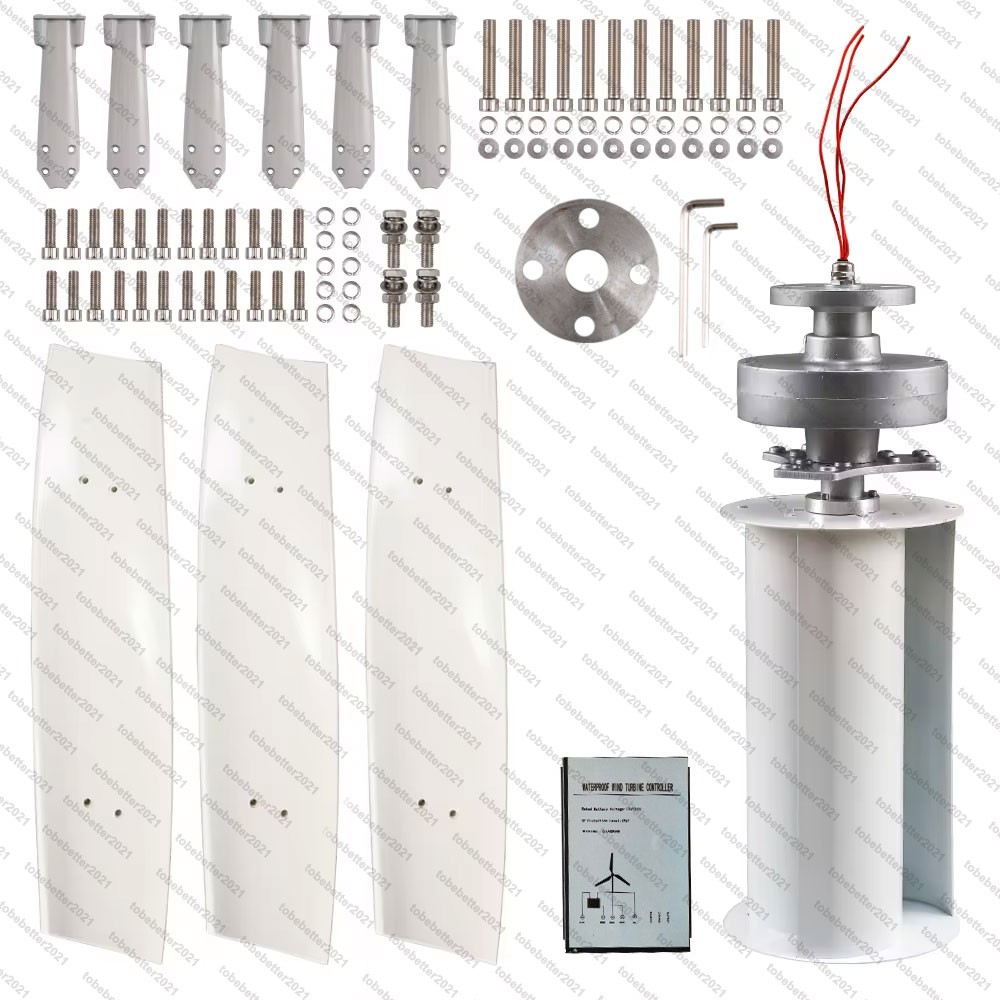

Package included：

1x power booster

1 x wind turbine

1 x control unit

3 x blades

1 x bag of screws for connecting the main body

1 x bag of screws for connecting the blades of the bracket

Other Accessory for Assembly
